Structural Design Analysis
We deal with analysis and design of RCC and steel structures. Also deal with Industrial structures and PEB structures. Provide detailed engineering, Fabrication drawings and Design reports after completing Design. Produce detailed drawings for understanding and site execution.
The structural design and structural analysis of the following equipments are done.
- Pipe racks
- Equipment support structures
- Technological structures
- Stack / duct support structures
- Piping supports
Analysis is done considering the equipment and pipe support loading, wind loads, seismic loads, etc. Foundation load data for all cases required for doing civil foundation design will be provided. In addition, we also provide 3D modeling services for the above structures and ensure that there is no fouling between structural members, resolve possible clashes between piping and structure etc.

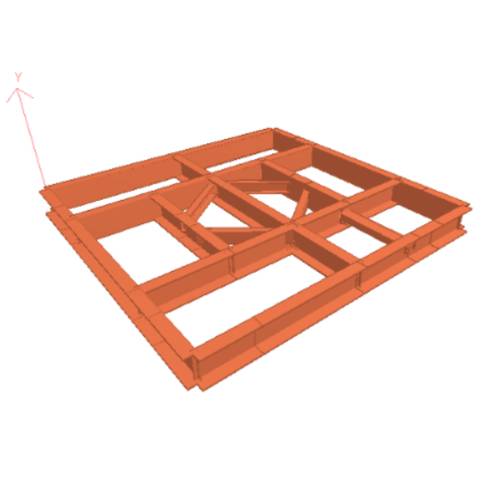

MODEL GEOMETRY 3 D Model
